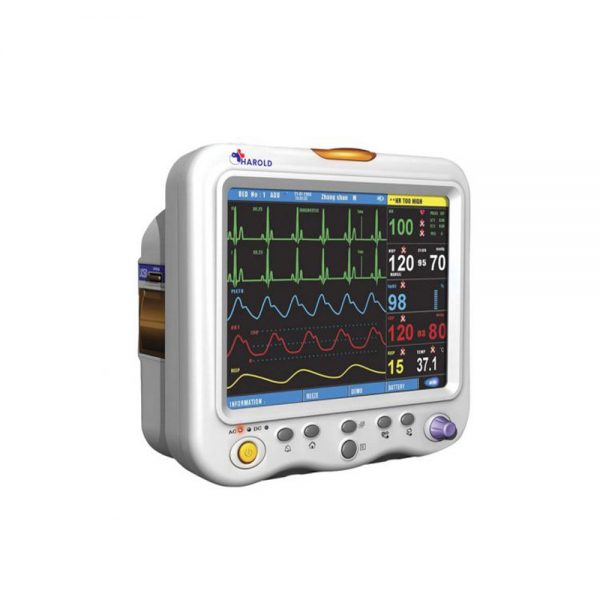

HAROLD PM 150

Name: HAROLD PM 150 - Marjan International-MIPL
Brand: Equipment
Availability: InStock

৳ 0

Multi-Parameter Patient Monitor

Features

15′ color TFT LCD screen supports display max. 11 waveforms
Personated voice reminding alarm; Visual On-display and integrated alarm light
Display mode: Standard, Large Font, NIBP Trend, Trend Table, Full lead ECG, Oxy CRG.
Drug calculation and titration table
Real-time ST-segment analysis, pacemaker detection and Arrhythmia analysis,
Extended advance function: IBP, IOC, EtCO2, Multi-gas/O2
Suitable for monitoring adult, pediatric and neonatal patient.
Supporting storage of 720 hours patient data, 1000 NIBP records and 500 alarm event.
Internal lead-acid battery
Multi-language: English, Spanish, Portuguese, Russian, French, German, Czech, Denish, Dutch, Finland, Italian, Porlish, Turkish

Inquire Us

Description

Standard Configuration

Anti-glare big screen, rechargeable lead-acid battery, 3/12-Lead ECG, Respiration, NIBP, SpO2, Pulse Rate, Temperature

Physical Specifications
Dimension and weight	Dimension	330mm(W)260mm(H)140mm(D)
Dimension and weight	Weight	standard configuration: 4 kg
Operation environment	Power requirements	AC 90-300V, 50/60HZ, 60W
	Power	90VA
	Temperature	0-40℃
	Humidity	0-93% non-condensing
Patient range	Adult, neonate and pediatric patients

Performance Specification

Display	15’ color TFT LCD screen, support external VGA(option). rolling and refreshing waveform display	IBP
Display mode	Standard, large font, NIBP trend, trend table, full lead ECG, Oxy CRG.	Measurement range	-50-360mmHg
Interface	Parameter cable interfaceAC power input socket Network interface External VGA interface for connection of alternate display	Channel	2 channels
Battery	1 internal rechargeable lead-acid battery, 2.0Ah 12V	Pressure transducer	Sensitive :5u V/V mmHgImpedance range :300-3000 Ω
Alarm indicator	Visual on-display and integrated alarm lightAudible alarm and personated voice reminding alarm	Pressure names	ART,PA,CVP,RAP,LAP,ICP,P1,P2
Data storage	720 hours monitoring data10000NIBP records storage 500 alarm event.	Alarm range	-10-300 mmHg
Printer	Built-in 50mm thermal printer (option),3 traces, print speed 12.5mm/s & 25mm/s & 50mm/s print width:50mm	PR from IBP	Range & Accuracy:25-200bpm ±1bpm or ±1bpm which is greater 201-350bpm ±2%
Net working	Support connection to central monitoring station through LAN (TCP/IP) or wireless connection	PR from IBP	Resolution : 1bpm
ECG		Depth of Anesthesia (BIS)
Leads type	3/12-lead	EEG sensitivity	+/- 475μV
Sweep speed	12.5mm/s, 25mm/s,50mm/s	Noise	< 2uVp-p (1-150 Hz)
Gain selection	×0.25，×0.5, ×1, ×2	CMRR	> 100 dB
ECG waveform	3 channels	Input impedance	> 50mohm
Operation mode	Diagnostic, monitor, surgery	Sample rate	1024 samples/s, 16 bits
Heart rate range	15 -350bpm	Index and display update	0-100, filter 1-47 Hz, 1 sec. display update
Accuracy	1bpm or ±1% whichever is great	EEG waveform	± 500 µV saleable, filter 1–30 Hz, 3 sec. window length.
Alarm range	Audible and visual alarm, adjustable	ESR	0-100%
ST/ arrhythmia	Real time S-T segment detection, pace detection and arrhythmia analysis	EMG 0-100 arbitrary unit	Curve and bar
Protection	Against electrosurgical interference and defibrillation	Index trend	5 min and 60 min
Respiration (RESP)		Digital output	Wireless BT interface (RFCOMM). 10 meters range
Method	Thoracic impedance	Alarms	IoC high and low user selectable limits
Operation mode	Auto/manual	Artifact rejection	Automatic: user can disable.
Measurement range	Adult: 0-120BrPM; neonatal /pediatric: 0-150BrPM	Sensor impedance range	0 – 14kohm
Apnea alarm	Yes	EtCO2 (Main-stream / Side-stream / Micro-stream CO2)
Alarm	Yes, audible and visual alarm ,alarm events recallable	Measurement range	0-150mmHg
NIBP		Accuracy	±2mmHg(0-40mmHg)±5% of reading(41-76mmHg) ±10% of reading (77-99mmHg)
Method	Automatic oscillometric	Resolution	1mmHg
Operation mode	Manual/Automatic/STAT	Sampling rate	70m1/min 100m1/min
Auto measure time	Adjustable	Sampling rate accuracy	0.15 or 15m1/min
Measurement unit	mmHg / kPa selectable	Start-up time	30 Sec. the module enters the warming up status after the start up.1 minute later, it enters the ready-to-measure status.
Test interval	1-480 minutes	Respiration rate	3-150 rpm
Measurement range	Adult: 0-300 mmHg ;Child: 0-240 mmHg ; Infant: 0-150 mmHg	Respiration rate accuracy	±2BrPM (0-70BrPM)±5BrPM (>70BrPM)
Over-pressure protection	Double safety protection	Response time	When measured with a neonatal water trap and a 2.5 m-long neonatal sampling line:< 3s @ 100 ml/min <4 s @ 70 ml/min
Accuracy of blood pressure measurement	The mean error shall be less than±5mmHgthe standard deviation shall be less than 8mmHG	Multi-Gas/O2
Resolution	1 mmHg	Method	Infrared absorption
SpO2		Gas sorts	CO2, N2O, Des, Iso, Enf, Sev, Hal, O2, (Optional paramagnetic sensor)
Measurement range	0%-100%	Measurement range	CO2: 0~30%N2O : 0~105% O2, :0~105% Enf, Iso, Hal: 0~30% Sev: 0~30% Des:0~30%
Resolution	1%	Data output	Fi and ET values
Accuracy	±2% (70-100%, adult/pediatric, non-motion )±3% (70-100%, neonate, non-motion ) ±3% (70-100%, adult/pediatric/neonate, motion ) 0-69% unspecified	Respiration rate	±1BrPM(2~60BrPM)61~100BrPM (unspecified)
Alarm range		Other	Up to 4 waveforms displayedAgent mixture detection MAC value displayed
Pulse rate	Pulse range: 0-350bpmAccuracy: ±3bpm(non-motion) ±5bpm(motion )
Temperature (TEMP)
TEMP range	0-50℃
Resolution	0.1 ℃
Accuracy	±0.1℃ (excluding the sensor)
Channel	Dual-channel. provide T1;T2; △T
